PLC Automation







PLC Based Automation Systems, PLC Automation and Control Panel, Programmable Logic Controllers, Variable Frequency AC Drives, Variable Speed Drives, Motor Starters, Nashik, India

We supply a wide range of the Qualitative PLC and Automation Panels. We have perfect suitable and sufficient infrastructure. We have a team of Qualified Engineers to provide best and prompt service to our customers. Usage of best quality raw materials and strict quality parameters ensures durability of products manufactured by us.

These panels are fitted with remote input, output units and communication bus to control several operations.

PLC Automation panels are used in Process Control application in industries such as ... Steel / Aluminium / Wire and Cable / Tyre & Tube / Packaging / Plastic / Polyfilms / Pharmaceuiticals / Defence / Automobile / Power Plant / Marine / LPG Gas & Oil / Cement / Infracture / Crane Automation etc.

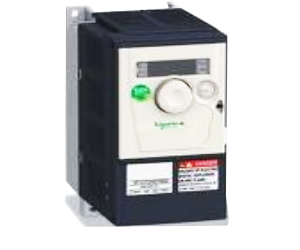

Variable Frequency AC Drives

SCHNEIDER PRODUCT RANGE
(AC Drives, PLC, HMI & SCADA )


Variable Frequency AC Drives

Variable Speed Drives For
Asynchronous Motors

Altivar 11 Real efficiency at a reduced size!…

Motor Powers
0.18 to 2.2 kW.
Voltage range
120 V / 230 V Single Phase
230 V 3-phase.

Applications
Conveyors, Automatic Doors, Barriers, Supplying Conveyors, Grinders, Saws, Drills, Exercise Equipment, Hoardings, Dough Mixers, Grinders, Folding Machines, Car Wash, Pleating Machines.



System Integrator For SCHNEIDER Electric & SSD Parker







Variable Speed Drives For Three Phase Asynchronous Motors
Altivar 312 High performance instinctively !

Motor Powers
0.18 to 15 KW

Voltage Range
Single - Phase 200 to 240 V up to 2.2 kW/3 HP.
3-phase 380 to 500 V up to 15 kW / 20 HP

Applications

Pumps, Ventilation, Materials Handling, Textile Machines, Packaging, Special Machines.








Variable Speed Drives For 3-Phase Asynchronous Motors



Variable Speed Drives For HVAC
Altivar 38 Mastering elements for more comfort & energy saving

Motor power
0.75 to 630KW

Voltage range
Single-Phase 200 to 240 V
3-Phase 380 to 460 V

Applications
Air conditioning and heating, Air treatment and regulation of water circuits, Ventilation, Pumping



Variable Speed Drives For HVAC



High Power Machines
Altivar 71

Motor Powers

0.37 to 500KW

Voltage range
1-phase 200 to 240 V up to 5.5KW
3-phase 380 to 500 V up to 500KW

Applications
Material Handling, Hoisting, Wood Machines, Process Machines, Textile Machines, Packaging Machines







Variable Speed Drives




A comprehensive range of Motor Starters
Altistart 48 Soft Starter 17 to 1 200 A


Voltage Range


Single-phase 200 to 240 V.
3-phase 380 to 690 V
Rating: 0.75KW to 630KW



Applications
Pumps, Fans & High Inertia Machines, Compressors, Conveyors.











Motor Starters




Programmable Logic Controllers (PLC)
Smart Relay–Zelio Logic your advanced Solution for simple automation comprising 10 to 40I/O


2 ranges to choose from : -
Zelio Logic Compact & Modular
Power Supply :- 230VAC & 24VDC Optimise installation time, Programming time and cost
Of your application.

3 monobloc models with
10, 12 or 20 I/O. upto 40 I/O with Modular version versions with and without display & buttons.

Programmable Logic Controllers


TWIDO – Ideal for simple

Installations and small machines.
Available in compact or Modular versions
Twido offers flexibility & simplicity.
Analog handling capability.

3 models with Compact
10, 16 or 24 I/O. upto 256 I/O with Modular version
versions display optional.






Programmable Logic Controllers (PLC)

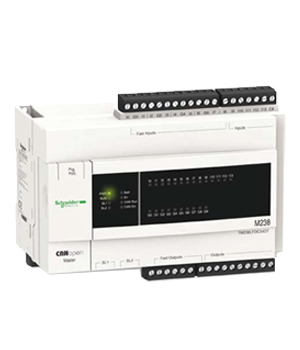

PLC- M238



The Modicon M238 programmable controllers and the SoMachine software provides
simple and intelligent solutions to meet all your business needs.

The compact logic controller solution can also be used for extensive cabling flexibility with
input/output extension modules. A number of connection possibilities are offered such as
removable screw block terminals, spring terminal blocks and HE 10 type connectors for
simple, fast and secure cabling




PLC- M238

M258 PLC

Compact, expandable, and easy to install, these controllers are designed for machine builders ( OEMs ) to offer speed control, high speed counting, motion and communication networks. The controller includes a CPU ( 22ns / inst ), embedded communication ports (Ethernet & CANopen master) and advanced built-in features such as data logging, WebServer and FTP server.

Improve machine performance

Independent axis up to16 axes
Typical digital I/O needs: up to 2400 I/Os
Typical analog IO needs: analog I/O: 12 ou16 Bits resolution
Advanced features: HSC / Reflex output / Event Tasks

Peripheral Devices:

Drives, servos: Up to 16 (avg. 8)
HMI: Graphic
Upper level connection: embedded ethernet

Simple Machine Control
Packaging
Conveyance Lines
Repetitive Machines
Complex and Special Machines
Assembly Lines



M340- PLC

Equipped with astounding memory and performances, this featherweight version will
imbue your applications with new momentum. Designed to operate in total synergy
with other Telemecanique devices, Modicon M340 represents pure concentrated
power.

Performance
b 7 Kinstructions/ms
b 4 MB of program memory
b 256 KB of data

Compact Design

b 3 communication ports integrated in the processor
b High-density discrete I/O modules with 64 channels in a 32 mm wide format.

Communicative, with its integrated ports

CANopen machine and installation bus
Ethernet TCP/IP network - Transparent Ready
Modbus serial link or character mode
Remote access via STN, GSM, Radio or ADSL

Expert

Counter modules with ready-to-use functions
Function block library dedicated to motion control. MFB (Motion Function Blocks)to the PLCopen standard
Advanced library of process control blocks oriented towards control of machinery

Innovative

USB port as standard
Embedded Web server
Recipe file management via FTP protocol
“Plug and Load” SD memory card
No batteries

Ruggedness

Rack architecture enabling hot swapping of modules during operation (Hot-Swap)
Exceeds the standards in terms of shocks, vibrations, temperature, altitude and Withstand to electrical interference
.


M340- PLC


MICRO PLC
(Up to 248 I/O) Ideal for Machine Builders.


•  A large no. of integerated functions.
•  A PLC which fits anywhere
•  A Flexible and varied range.
•  A PLC designed for High speed

Applications.
•  An Integeral real time clock.
•  Analogue modules.

Available in Six different configurations With power supply of 230VAC & 24VDC.

Programmable Logic Controllers

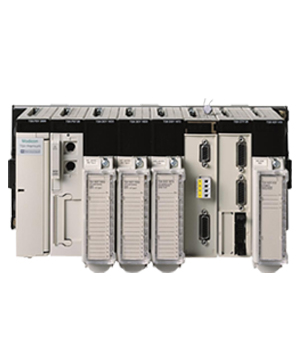

PREMIUM PLC (Up to 2048 I/O)

Mastering innovation, Applications and Communication to Optimize machine process
The Solution which :
•  Reduces machine cost
•  Adds value to your machines
•  Provides transparent access to data.
•  Enhances availibility & productivity.
•  Provides unrestricted compatibility.


Premium PLC

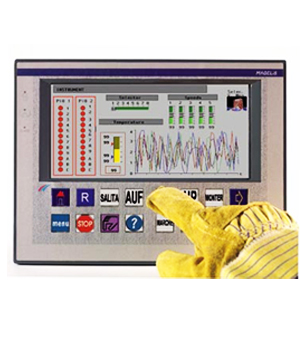

Human Machine Interface (HMI)
(The Essential guide)


•  Display units with alphanumeric screen & Matrix screen.
•  Terminals with alphanumeric screen & Matrix Screen.
•  Graphic Terminals with Keypad & Touch screen (5.7, 7.4,10.4 & 12.1inches)
•  Industrial PC’s (Compact & Modular range) Mechanical handling, modular machines,     textiles machines. Transferts machines, lifts.
•  Serial link communications.



Human Machine Interface

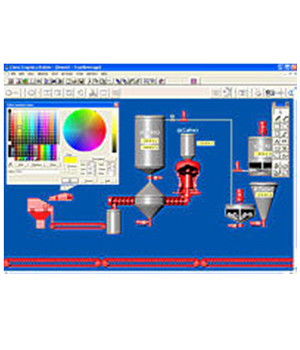

SCADA software

The Vijeo Citect offer is characterized by its flexibility, allowing customers to build the
supervision solution that corresponds to their needs.
Vijeo Citect features and power makes it suitable for any application in any market, in most demanding fields:

b Energy and Infrastructure:
v Airports,
v Roads & tunnels,
v Water,
v Oil & Gas.
b Industry:
v Mining,
v Metal,
v Minerals.

The very flexible architecture in Vijeo Citect software and applications make the
investment are always scalable, and durable.

From small stand-alone system, to large distributed redundant multiple network
systems, only one single development tool needs to be used: this dramatically
reduces training and knowledge management costs, optimizing the investments.
As Vijeo Citec is perfectly aligned with Schneider Electric’s control / HMI / SCADA
offer development strategy, designers and users take full benefit from single
Accountability with Schneider Electric for system integration and performance.

Vijeo Citect exists:

v in a Client-Server architecture, ranging from 150 Points to an unlimited number of Points
v in a stand-alone version called Vijeo Citect Lite that can manage up to 500 Points, see page 36375/7.
Each Server license includes a Server Client and OFS. OFS stands for “OPC
Factory Server” from Schneider Electric. Based on the OLE for Process Control
(OPC) standard, OFS software allows a “client”, such as a Vijeo Citect SCADA
application, to access any data in Schneider Electric control systems and electrical
distribution devices connected to networks or fieldbuses, in real time.
It also allows communication with third-party devices supporting Modbus and Modbus TCP protocols.
At the heart of the Transparent Ready offer, OFS enables simpler, more open and transparent communication between your software applications and your devices.
These are just some of the advantages that ensure a complete interoperability solution that is central to your process.
Server licenses VJC 1011 pp are purchased by number of Points that are required to be displayed, not I/O (1). An upgrade offer VJC 1ppp 1p pp is available for expanding Client and Server licenses to the next Points Count. (2)

SCADA software

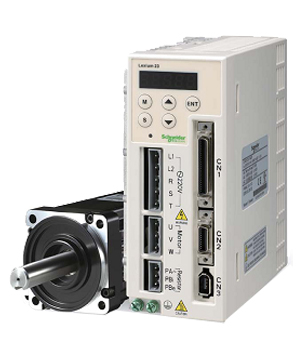

Lexium-23 Servo Drive



The range of Lexium 23 servo drives, compatible with BCH servo motors constitutes
a tailored solution for machines across a wide power and functionality range:
b Lexium 23 C servo drives :
v 200... 255 V single phase, 0,1 to 1,5 kW
v 170... 255 V three phase, 0,1 to 3 kW
b Lexium 23 M servo drives :
v 170… 255 V single phase, 3 kW to 7,5 kW
b BCH servo motor :
v Rated power : 0,1 to 7,5 kW
v Rated torque : 0,3 to 48 Nm
v Rated speed : 1000 to 3000 rpm depending of the model Lexium 23 servo drives wide power range combined with high performance functionalities and extended choice of BCH servo motors is the best suited package for all applications such as material working, material handling, textile, electronics, packaging and printing.

Lexium 23 servo drives can control your machine using 3 type of control modes:

Position control mode:


Using 3 types of pulse input (AB phase pulse,
CW CCW, Pulse/Direction)
Using internal 8 motion sequences.

Speed control mode :
Using analog inputs ( ± 10V)
Using internal 3 speed registers.

Torque control mode:

Using analog inputs ( ± 10V)
Using internal 3 torque registers

Switching control mode :
Under this mode, position, speed and torque control can be switched instantly by digital I/O.

Lexium-23 Servo Drive

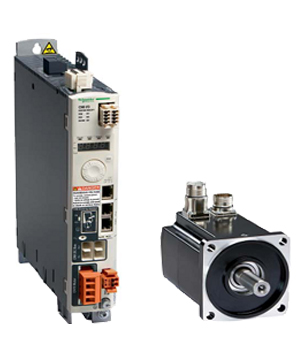

Lexium-32 Servo Drive

The Lexium 32 range of servo drives covers motor power ratings between 0.15 kW
and 7 kW with three types of power supply:
110…120 V single-phase, 0.15 kW to 0.8 kW ( LXM 32ppppM2 )
200…240 V single-phase, 0.3 kW to 1.6 kW ( LXM 32ppppM2 )
208…480 V three-phase, 0.4 kW to 7 kW ( LXM 32ppppN4 )

Its versatile specifi cations provide the Lexium 32 range of servo drives with excellent fl exibility for integration in different control system structures.

Depending on the model, the Lexium 32 servo drive has logic or analog inputs and outputs as standard, which can be confi gured to adapt better to applications.

It also has control interfaces for easy access to the various architecture levels:

It has a control interface for control via pulse train It integrates a combined CANopen/CANmotion port for enhanced control system performance

It can also be connected to the main industrial communication networks and buses using various communication cards
The following protocols are available: PROFIBUS DP V1, DeviceNet, EtherNet/IP and EtherCAT.

Lexium-32 Servo Drive

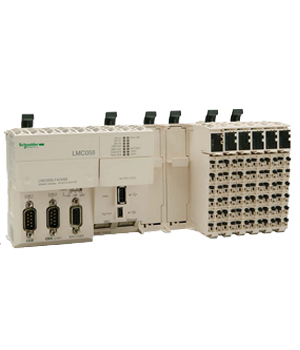

LMC058 Motion Controller


The motion controller Modicon LMC058 performs axis synchronization and coordination, via a fi eldbus, for applications requiring control of up to 8 Synchronized axes.

It integrates the standard motion control functions:
Velocity control and torque control Relative or absolute positioning Cam profi les for slave axes and control of programmable cam switches Virtual axes Electronic gearing function for velocity and position, linear and circular interpolations (2½D)
Master axis using an external encoder
Distance measurement and position capture on high-speed (30 μs) digital input

This is specifi cally designed for applications such as:

Material handling machines (conveyors, palletizers, storage and retrieval systems, etc.) and transfer machines (cranes, etc.)
Assembly machines ( tool fixing, clamping, etc.) Inspection and quality control machines
Packaging machines working “on the fly” ( flying shear, printing, marking, etc.)

Wood and metal working machines.

LMC058 Motion Controller
